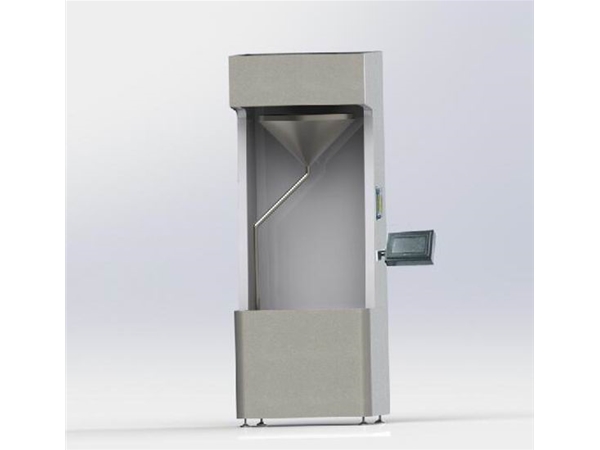

LFY-257E Bondis Door Water Repellent Performance Tester
LFY-257E Bondis Door Water Repellent Performance Tester
Main uses
Under a designated artificial rain shower, the fabric can resist the absorption of rainwater over a specified time, and the water absorption of the fabric and the outflow through the fabric can also be evaluated.
Technical parameters:
1. Rain height: 1500MM
2. Raindropper: 300 pieces/φ406mm
3. The flow rate of the surface of the sensation: 10±5mL/min/100 cm2 (adjustable)
4. Water droplet surface diameter: about φ4mm
5. Test piece specification: diameter 140mm
6. Sample exposure area: 80cm2
7. Number of test cups: 4
8. Test sample cup rotation speed: 6r/min
9. Inclination of the test sample cup: 15°
10. Outer diameter of the test sample cup: 100mm
11. Cross-shaped wiper specifications: 48×5mm
12. Wiper friction pressure: about 250cN
13. Wiper speed: 20 times/min
14. Power supply: AC 220V 50Hz 200W
15. Dimensions: 76×73×220cm
16. Weight: about 210kg
Applicable standards:
GB/T14577 ISO9865 BS EN 29865 DIN53888 JIS L1092,
