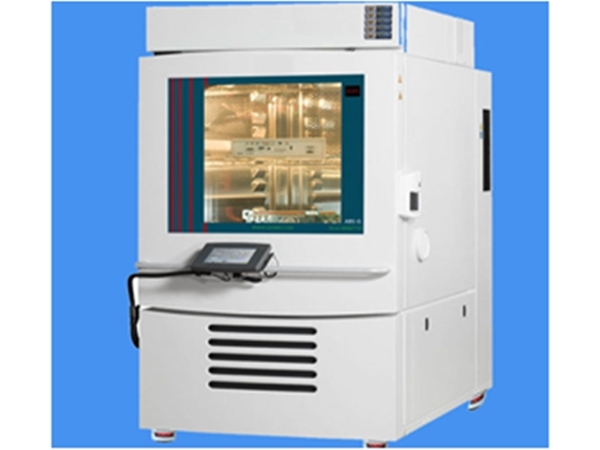

Main purpose:
It is used to measure the thermal resistance and moisture resistance of various textile products and textile fabrics, films, coatings, foam, leather and composite materials used to make these products under steady state conditions.
Instrument features:
1. Imported high-precision temperature sensor;
2. Integrated design of high-precision constant temperature and humidity chamber and instrument;
3. DSP microcomputer control and data processor;
4. Professional analysis software can directly measure and calculate the thermal resistance, moisture resistance, moisture permeability, moisture permeability index, thermal insulation, thermal conductivity, Kroos value, etc. of the sample;
5. Digital temperature sensor, real-time, fast and dynamic collection of temperature and humidity data, multi-point independent calibration;
6. National patented technology simulation test bench for human skin structure;
7. Imported motor and lifting system, capable of digital height setting, quickly compatible with testing of samples of different thicknesses;
8. Equipped with patented technology, the automatic water supply system provides high-precision water level replenishment with an error of less than 1 millimeter.
9. The whole machine has undergone special humanized testing, which is convenient, concise, and highly operable.
Technical Indicators:
1. Thermal resistance (Rct) range: (0.002-2.000) m2. K/W resolution 0.0001m2.K/W
2. Moisture resistance (Ret) range: (1.0-1000) m2. Pa/W resolution m2. Pa/W
3. The temperature range of the test bench is adjustable from 20 to 50 ℃; ±0.1℃
4. Temperature measurement accuracy: ± 0.1 ℃ Resolution: 0.01 ℃
5. Humidity measurement accuracy: ± 3% Resolution: 0.1%
6. Sample thickness range: (0-70) mm
7. Airflow velocity in the air duct: (1 ± 0.05) m/s 0.1m/s~2 m/s (adjustable)
8. External dimensions of thermal interconnect ring: 512mm × 512mm
9. Width of thermal protection ring: 127mm
10. Test board size: 250mm × 250mm
11. Sample size: 515mm × 515mm
12. Climate chamber size: 830mm × 780mm × 630mm
13. Power supply: AC380V ± 10% 50Hz 3.5kW
14. Dimensions: Host (1100 × 1220 × 1820) mm, computer desk (690 × 690 × 800) mm
15. Weight: Approximately 280kg
Applicable standards:

GB/T11048；ISO11092:2014  ASTMD1518  ASTMF1868(A-E)  JISL1096 NFPA1971，etc.

GB 38300-2025Protective clothing—Ensembles and garments for protection against cold
