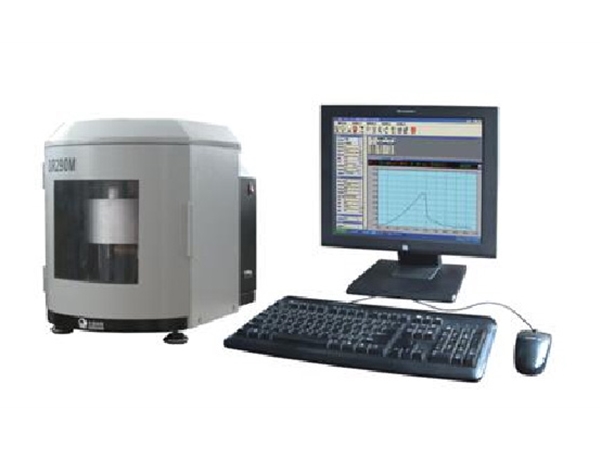

LFY-232M Textile dynamic moisture transfer performance tester
Main purpose
Liquid water dynamic moisture transfer performance test for textile moisture absorption and quick drying performance, rating fabrics based on comfort factors related to liquid management.
Technical Indicators
1. Up and down test sensor diameter: Φ 58.4 mm
2. Ring distance: 5 mm ± 0.05 mm, 7 test rings
3. Upper sensor probe: Spring probe specification: Contact surface diameter 0.54 mm ± 0.02 mm, copper gold-plated
4. Lower sensor probe: contact surface diameter 1 2 mm ± 0.02mm. Copper gold-plated; Resistance<50 m Ω
5. Test liquid delivery system: Delivery time: 20 seconds, liquid volume: 0.2 g ± 0.01 g, outlet stainless steel tube inner diameter 0.5 mm.
6. Test standard solution conductivity: 16 ms ± 0.2 ms;
7. Test liquid delivery volume: 0.2 g ± 0.01 g;
8. Test time: 120 seconds ± 0.01 seconds;
9. Test head pressure: 4.65 N ± 0.05 N
10. Efficient cleaning system, easy to clean before and after the experiment
11. Testing software that automatically processes test data for convenient and efficient evaluation of test results
12. Power supply: AC 220V 50Hz
Applicable standards
GB/T 21655.2-2009 Textiles - Evaluation of absorption and quick-drying - Part 2: Method for moisture management tests
AATCC 195
