Main purpose

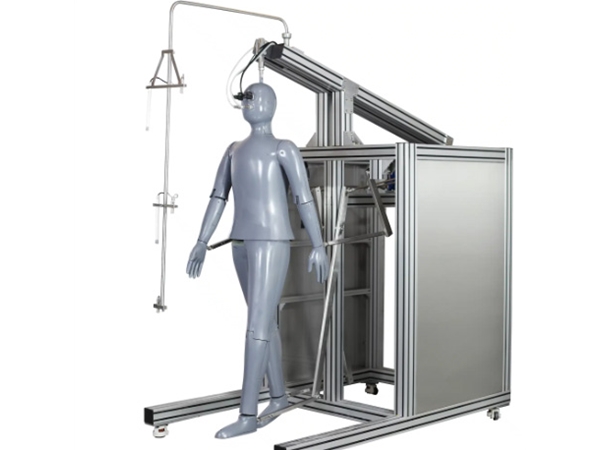

Used to test the thermal insulation performance of textile clothing, sleeping bags, cold clothing and other products - Warm body dummy testing method. During the process of simulating heat exchange between the human body, textiles and clothing, and the environment, the thermal resistance of the clothing is measured and calculated based on the relationship between physical parameters such as the temperature difference between the skin surface temperature of the warm body dummy and the ambient temperature, and the non evaporative heat dissipation rate per unit area of the body surface. The overall thermal comfort performance of textile and clothing products is comprehensively tested through real simulation.

Applicable standards

GB/T 46396-2025 Requirements and test methods of thermal insulating performance of home textiles

GB/T 18398-2001 Testing method for clothing thermal resistance- Thermal manikin method

GB/T 38426-2019 Test method for thermal resistance and use temperature of sleeping bags

ISO 15831 Clothing-Physiological effects-Measurement of thermal insulation bymeans of a thermal manikin

ASTM F1291 Standard Test Method for Measuring the Thermal Insulation of Clothing Using a Heated Manikin

ASTM F1720 Standard Test Method for Measuring Thermal insulation of Sleeping Bags Using a Heated Manikin

EN 342 Protective clothing-Ensembles and garments for protection against cold
