Main purpose

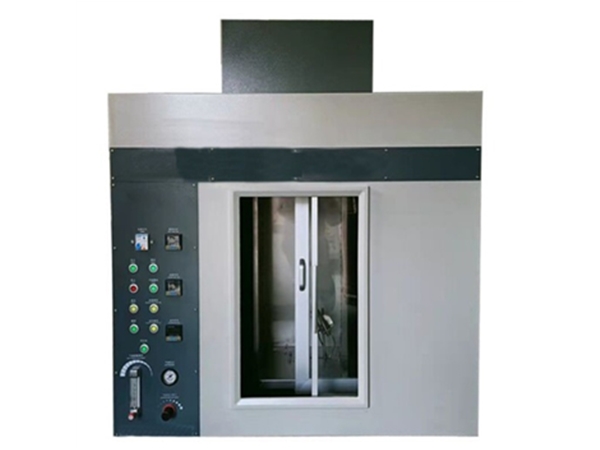

The Flame Spread Test Apparatus is a method specified in ISO 15025-2016 for measuring the limited flame propagation performance of industrial products in the form of directional textile fabrics and single or multi-component fabrics (coated, quilted, multilayer, laminated structures, and similar combinations) under small-scale flames. This test method is not applicable to materials that exhibit extensive melting or shrinkage.
Apply the predetermined flame to the surface (surface ignition) or bottom (edge ignition) of the vertically suspended test sample for 10 seconds. Measure and observe the flame propagation rate, the form of droplets, combustion droplets or the formation of perforations, afterglow, and continued burning time, as well as the length of damage, to evaluate the flame retardant performance of the fabric.
Technical Parameters
|
sample size |
Bottom material: 230mm × 230mm (± 3mm) longitudinal and transverse four pieces Wall and roof material: 90mm × 300mm (± 3mm) four blocks in longitude and latitude directions |
|
Burning flame height |
40±2mm (height adjustable) |
|
Ignition Time |
12s (preset adjustable) |
|
afterflame time |
1s ～ 999.9s(digital display, can be manually paused to maintain digital display) |
|
Ignition nozzle angle |
Vertical method |
|
Ignition nozzle diameter |
The distance between the 5mm inner diameter barrel and the fixed orifice is 75mm+/-6mm |
|
burner |
Width 320mm x Depth 320mm x Height 760mm |
|
Combustion gas |
The purity of propane gas needs to be above 95% |
|
Inlet air pressure of igniter |
2.5psi+/-0.25Psi(adjustable) |
|
Power |
220V 0.5kVA |
|
Diameter of marker light pipeline |
Approximately 1.6mm, 3mm from the edge of the burner, and 3mm from the flame length of the marker light |
|
cupboard |
Provide an independent space for testing |
|
view window |
Transparent tempered glass observation window for easy observation and testing process |
|
Fixture fixing block |
Fix the sample clamp vertically in the middle position |
|
Sample clamp |
Sample fixing fixture |
|
Flame gauge |
Flame height measuring ruler |
|
Ventilation opening |
Provide necessary air circulation for combustion testing |
|
Environmental Requirements |
Temperature (23 ± 5 ° C) and humidity between 15% and 80% |
|
Control method |
Adopting ordinary electromechanical control, easy to operate |
|
Overall dimensions |
Width 1120mm x Depth 580mm x Height 1350mm |
|
Applicable standard |
ISO 15025:2016 Protective clothing Protection against heat and flame Method of test for limited flame spread
ISO 11612:2015 Protective clothing - Clothing to protect against heat and flame - Minimum performance requirements
|
Installation requirements
1. It is recommended to place the equipment on a workbench with a height greater than 70cm and a tabletop size greater than 120cm * 65cm;
2. Open a smoke exhaust hole with a diameter greater than 10cm at a height greater than 140cm upwards from the center of the tabletop;
3. The device itself has no requirements for the environment, only the temperature and humidity of the environment need to be adjusted within the specified range when making various standards.
