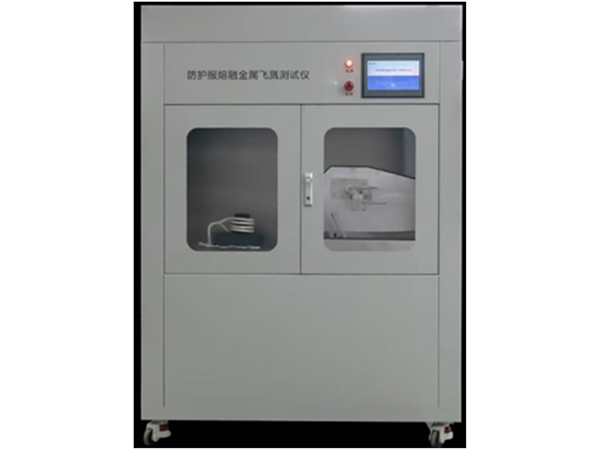

Main purpose

Used for testing the heat-resistant penetration performance of protective clothing, gloves, and other safety protection products against molten metal splashes (large amounts of molten metal splashes) in the metal smelting industry and quality inspection agencies; Pour a certain quality of molten metal onto a sample placed at a certain angle, and evaluate the damage of the sample by recording the changes in the PVC film attached to the back of the sample after pouring. Based on the test results, calculate the quality of metal casting, evaluate the protection level of the sample, and determine the protective ability of the sample against molten metal by examining the skin simulation material after testing.

Technical indicators

1. Touch screen control+stepper motor control system, automatically adjusts the pouring angle and speed of the pouring material, and accurately adjusts the pouring speed and angle of different pouring materials.

2. Equipped with an emergency stop button and anti splash pouring device to protect the safety of operators.

3. Equipped with a pouring material diversion and recovery system, it facilitates the recovery of pouring materials.

4. The pouring position and crucible structure design meet the standard requirements.

5. It can quickly adjust the angle and height of different pouring material sample supports, and has an automatic alarm function to prevent misplacement.

6. Equipped with an adjustable high-power electromagnetic induction heating device, it greatly improves the melting speed of materials and enhances experimental efficiency.

7. Design and implement an integrated protective structure for ventilation and smoke exhaust, with full functionality, small footprint, and good protection.

8. Equipped with complete functional devices, including crucible, heating furnace, balance, PVC film, pouring material, ventilation device, etc.

① Crucible: Made of high-purity graphite material, with a height of 97mm, a top diameter of 80mm, a bottom diameter of 56mm, and a full capacity of 190ml.

② PVC film: single-sided embossed, with a weight of (300 ± 30) g/m².

③ Heating furnace: Electromagnetic induction, heating temperature ≥ 1700 ℃.

④ Temperature sensor: Range 700 ℃~1700 ℃, accuracy ± 10 ℃.

⑤ Balance: Range 0-3000g, accuracy ± 1g.

9. Pouring speed: (36 ± 2.5) °/s and (18 ± 1.5) °/s.

10. Power supply: AC 380V, 50Hz, maximum power: 35kW.

Applicable standards

GB 8965.3-2022 Protective clothing—Clothing to protect against molten metal splash

FZ/T 64083-2021 Fabrics for protection against molten metal splash

GB 38306-2025 Hand protection-Protective gloves against thermal risks

ISO 9185：2007，ISO 11612：2015，EN 407：2020

ISO 11612:2015 Protective clothing - Clothing to protect against heat and flame - Minimum performance requirements
