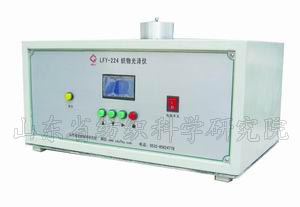

Name：LFY-224 fabric gloss meter

Details

The main purpose
This instrument is used to measure the reflective performance or gloss of fabrics and sheet materials. It is suitable for cotton, wool, silk, linen, chemical fiber pure or blended fabrics, reflective marking fabrics, coated glass, etc.
Instrument characteristics
1. A light source with a certain light intensity is irradiated on the test sample at an incident angle of 60°, and the regular reflection light and diffuse reflection light are respectively received at the angle of 60° and -30°.
2. The light intensity is displayed digitally by photoelectric conversion.
3. Equipped with standard calibration device.
4. Convenient adjustment of incident angle and observation angle.
Technical index
1. Sample: 100mm×100mm
2. Incident angle: 60°
3. Observation angle: 60° and -30°
4. Display mode: 4-digit digital display
5. Power supply: 220V 50Hz
6. Power consumption of the whole machine: <100W
7. Dimensions: 650mm×450mm×400mm
Applicable standards (for different standards, different accessories are required)
FZ/T 01097-2006 Fabric gloss test method
GB/T 8686-1988 Fabric gloss test method
